The RFS-N41N and RFS-N41P models are OLED display fiber optic sensors with diffuse reflection and through-beam detection capabilities, offering reliable performance across varying distances.

Key highlights:

• OLED display for easier setting and configuration
• Fast response times (as low as 100µs) for high-speed applications
• Multiple detection distances (200mm–1200mm) to suit different setups
• Output options (NPN or PNP, switchable NO/NC status)
• Built-in protection circuits for polarity reversal, short-circuit, and overload protection
• Adjustable output delay modes for fine-tuned signal control

Specifications:


Model	RFS-N41N
Output type	NPN output
Detection method	Diffuse reflection, through-beam (determined by fiber type)
Detection distance	Standard: diffuse reflection 200mm, through-beam 700mm Long distance: diffuse reflection 300mm, through-beam 1200mm
Output status	Normally open/normally closed switchable
Reaction time	High speed: less than 100us Standard: less than 500us Long distance: less than 3ms
Protection circuits	Power supply polarity reverse polarity protection; Output short-circuit or overload protection
Output delay	Normal output/output extension/delayed output/primary output, four output modes are optional
Supply voltage	12-24DC±10%, floating P-P 10% or less
Light source	Red, 4-element light-emitting diode body
Consumes current	Less than 30mA
Ambient temperature	-25 to +55°C, no freezing
PNP model: RFS-N41P

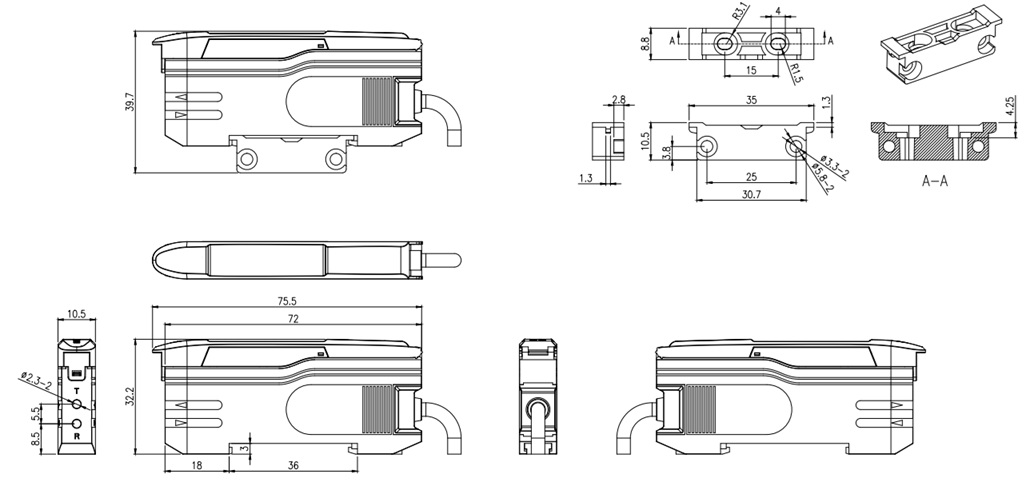

Dimension:
